Bimma EWD - Wiring Diagrams
Tarik Ahabchane
This application contains all electrical wiring diagrams and location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2026. Regularly updated for trustful electrical wiring diagrams and can be used as a reference when you do repairing BMW cars. Currently includes the following models (all models from 1998-2026) : 1 series : E81, E82, E87, E88, F20, F21, F40, F52, F70 2 series : F22, F23, F45, F46, F87, G42, U06, G87 3 series : E46, E90, E91, E92, E93, F30, F31, F34, F35, F80, G20, G21, G28, G80, G81 4 series : F32, F33, F36, F82, F83,G22, G23, G26, G82, G83 5 series : E39, E60, E61, F10, F11, F07, F18, G30, G31, G38, F90, G60, G61, G68, G90, G99 6 series : E63, E64, F12, F13, F06, G32 7 series : E65, E66, E67, E68, F01, F02, F03, F04, G11, G12, G70, G73 8 series : F91, F92, F93, G14, G15, G16 X series : E84, E83, E53, E70, E71, F48, F39, F25, F97, F26, F98, F15, F85, F16, F86, G01, G02, G05, G06, G07, G08, G09, G45, G48, U10, U11, U12 Z series : E52, E85, E89, G29 I series : I01, I12, I15, I20 Application features: - Download function - Print function - Favorites - No ads

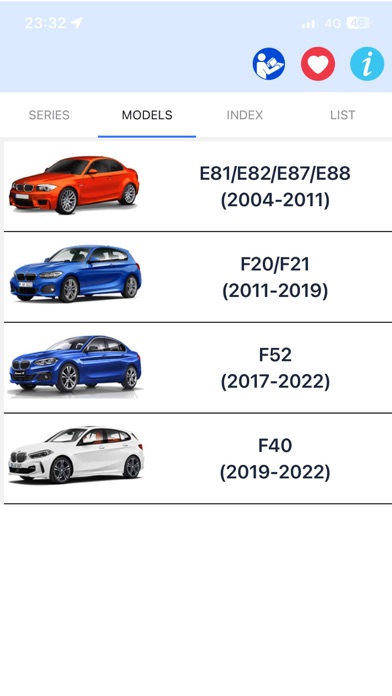

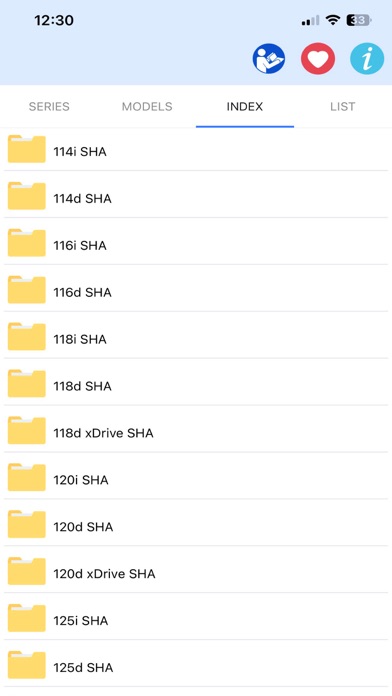

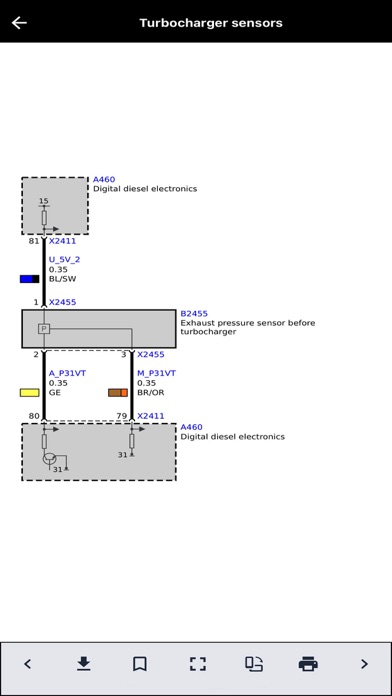

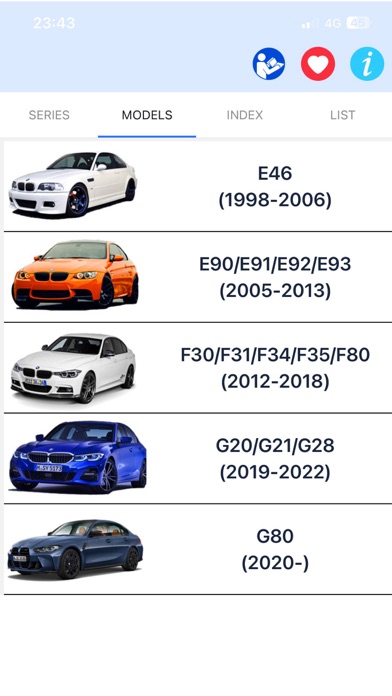

Screenshots
